CMM-12-430R Spring Machine

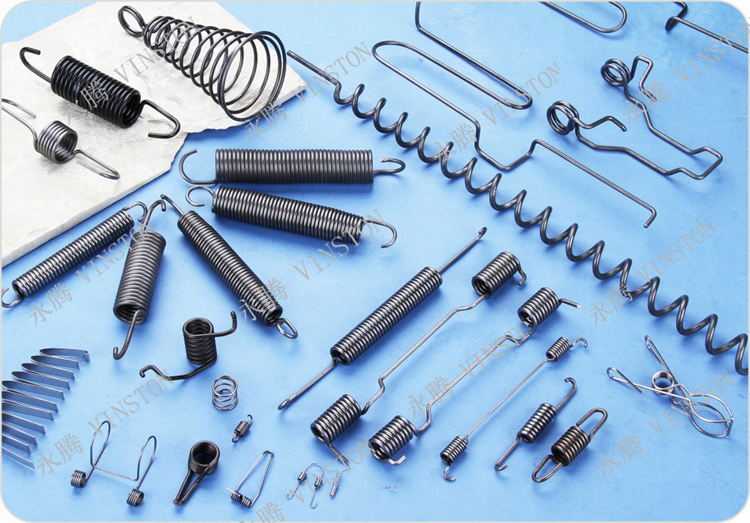

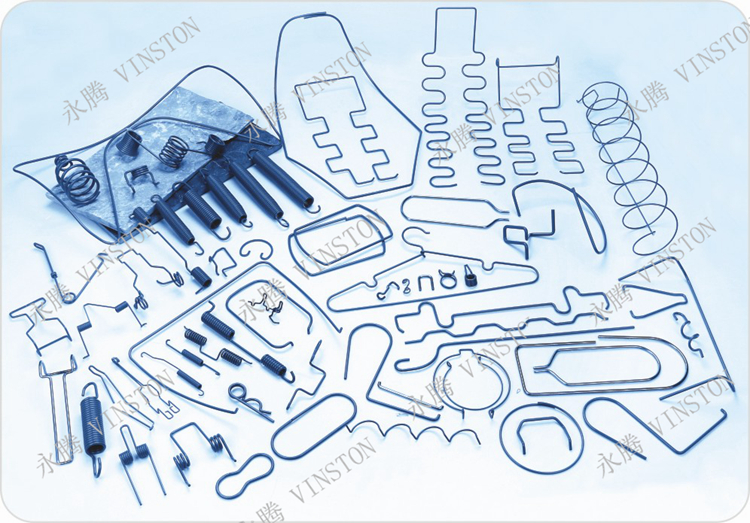

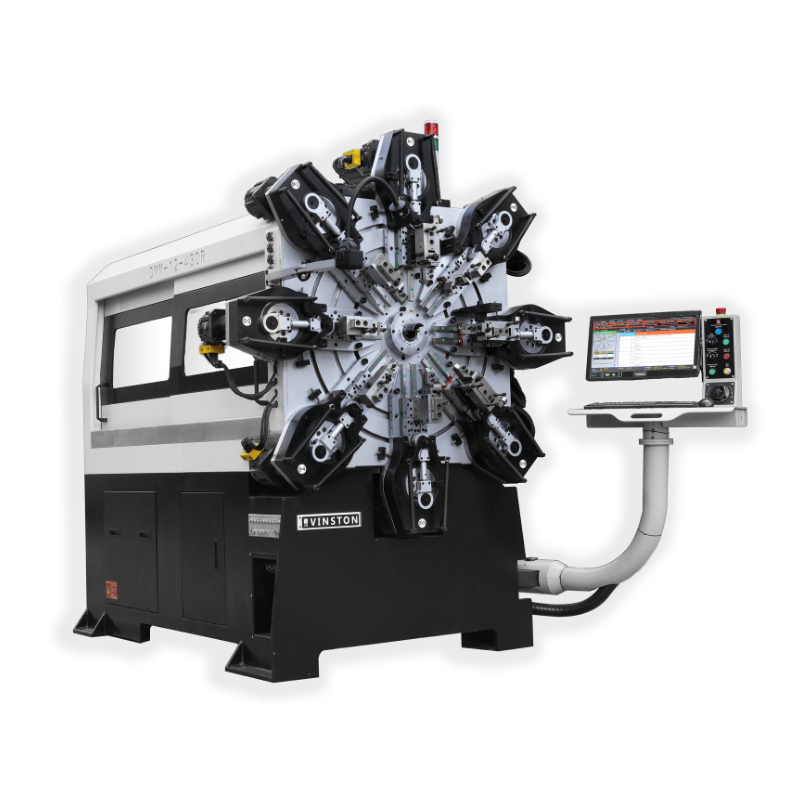

Vinston CMM-12-430R Rotary wire, Spring Machine. It can produce springs and wire forming with wire diameters ranging from ?1.5 to 4.3 mm. This machine adopts a unique camless and armless design, controlled by multiple servo motors independently. It is capable of manufacturing various types of special springs, compression springs, tension springs, double torsion springs, battery springs, flat springs (clock springs), and various wire forming parts. It offers high precision, quick setup, and stable reliability.

GET A QUOTE

PRODUCTS

Busbar Machine

New Machines

Spring Machine

Wire Bending

Spring Former

Wire Decoiler

Knives Accessories

DETAILS

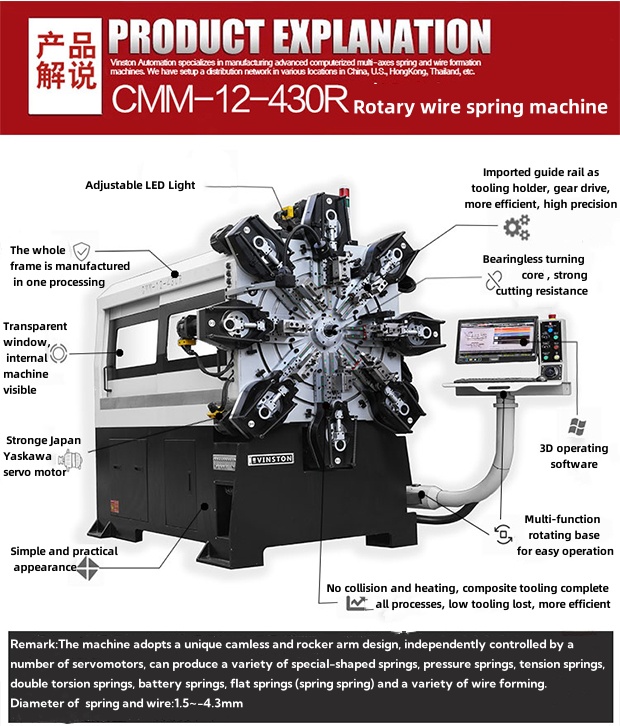

Product Advantage

1、All servo slides utilize double rails for stable and precise adjustments.

2、X-Y slide (lateral slide) facilitates pitch adjustments and provides an extra blade option.

3、Dual or two spinner support.

4、Fault detection and warming systems provide lights out production.

Technical Parameters

MODEL		CMM-12-430R
Wire Dia.		1.2-4.0mm
Max. Wire Feed Length		Unlimited
Number Of Axes		12 Axis(Spinner included)
Power		26KW
Voltage		220V/380V/410V
Hardware		Industrial
Voltage Regulator Power		30KVA
Air Compresser System	Air pressure	5-6KG/cm
	Air cylinder	3pcs
Dimensions	Depth	3540mm/140"
	Width	2240mm/88"
	Height	2200mm/87"
Machine Weight		4845KG/10702 lbs
